Stranding Machine vs. Vertical Cage Strander: What Is the Difference?

2026-09-22 16:33:15

Choosing the right equipment is an important decision in Modern Cable Manufacturing. A stranding machine and a vertical Cage Strander can both be used to combine individual wires or cable elements into a controlled stranded structure, but their mechanical configurations, production characteristics, application ranges, and space requirements can be quite different. Understanding these differences helps manufacturers select equipment that matches conductor size, cable construction, production capacity, and factory conditions.

A stranding machine is a broad equipment category used for combining multiple wires into a stranded conductor or cable component. A Vertical Cage strander is a more specific machine configuration in which the stranding cage is arranged vertically. Vertical cage structures are particularly useful in applications involving large cable components, large pay-off reels, heavy conductors, or Production Processes where vertical equipment arrangement provides practical advantages.

This guide explains the differences between a stranding machine and a vertical cage strander, including working principles, machine structures, production applications, tension control, space requirements, maintenance considerations, and equipment selection.

What Is a Stranding Machine?

A stranding machine is equipment designed to combine multiple individual wires into a unified stranded structure. During the stranding process, individual wires are supplied from separate pay-off positions, guided toward a common forming area, twisted according to a specified lay length, and then collected by a take-up system.

The term stranding machine covers a wide range of machine designs. Depending on the application, a stranding machine may use rigid cages, planetary arrangements, tubular structures, rotating bows, or other mechanisms to create the required twisting movement.

The main purpose of a stranding machine is to achieve controlled and consistent wire arrangement. Important operating paraMeters include wire tension, rotational speed, line speed, strand count, wire diameter, lay length, and take-up tension.

Because cable products vary significantly in size and construction, different types of stranding machine are used for different production requirements. Small flexible conductors may require a high-speed configuration, while large conductors may require a heavy-duty machine with larger pay-off capacity and stronger mechanical support.

What Is a Vertical Cage Strander?

A vertical cage strander is a specialized stranding machine that uses a vertical cage arrangement for the stranding operation. Instead of positioning the main rotating cage horizontally, the cage is arranged vertically around the production axis.

The vertical arrangement can provide practical advantages when handling large cable components and large-diameter reels. In some heavy cable applications, a vertical cage structure can make better use of available installation space and provide suitable support for large rotating components.

A typical vertical cage strander may include a vertical rotating cage, pay-off units, wire guiding components, closing equipment, haul-off equipment, take-up equipment, transmission components, electrical control systems, and safety protection systems.

Vertical cage equipment is particularly relevant to large conductor and heavy cable manufacturing applications. Depending on the machine configuration, vertical structures can be designed to accommodate large wire diameters and large cable constructions.

Stranding Machine vs. Vertical Cage Strander

The simplest way to understand the difference is that stranding machine is a general equipment term, while vertical cage strander describes a particular structural configuration. A vertical cage strander is therefore a type of stranding equipment rather than a completely separate production principle.

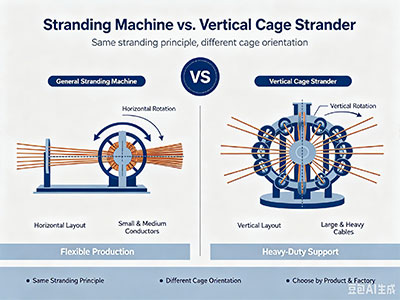

The main difference is the physical arrangement of the stranding cage. Conventional stranding machine designs may use horizontal cages or other configurations, while a vertical cage strander places its main cage in a vertical orientation.

This structural difference affects installation, reel loading, machine footprint, material handling, maintenance access, and the types of cable products that can be processed efficiently.

Structural Difference

The structure is one of the most obvious differences between a conventional stranding machine and a vertical cage strander. In many conventional machine designs, the main rotating components are arranged horizontally along the Production Line.

A vertical cage strander changes this arrangement by placing the main cage vertically. The rotating cage can therefore support wire pay-off positions around a vertical production axis.

This configuration can be useful when production involves large reels or large cable components. The vertical structure can also provide a different approach to equipment layout compared with traditional horizontal arrangements.

However, the best structure depends on the actual production requirement. A vertical cage is not automatically better for every cable product. Manufacturers should consider conductor dimensions, cable weight, required speed, reel capacity, available floor space, and production process before selecting the machine configuration.

Working Principle Comparison

The basic working principle of a stranding machine and a vertical cage strander is similar. Individual wires are supplied from pay-off positions and brought together through guiding and forming components. Controlled rotation then creates the required stranded structure.

The difference is primarily related to how the wire carriers and rotating cage are arranged. In a conventional stranding machine, the cage may rotate around a horizontal axis. In a vertical cage strander, the main cage rotates around a vertical axis.

Regardless of the configuration, synchronization remains critical. The relationship between cage rotation and linear movement determines the lay length. Wire tension must also remain stable so that each individual wire follows its intended path without excessive slack or stretching.

Production Capacity

Production capacity depends on more than the machine name. A stranding machine may be designed for high-speed production of smaller wires, medium-sized conductors, or heavy cable components. A vertical cage strander may focus on applications where large components and heavy cable constructions are more important than extremely high rotational speed.

When evaluating production capacity, manufacturers should examine the actual technical specifications rather than relying only on a nominal machine type. Important parameters include maximum wire diameter, maximum stranding diameter, number of pay-off positions, reel dimensions, maximum cage speed, line speed, and take-up capacity.

A machine with a higher nominal speed does not necessarily provide higher practical output if the cable product requires large conductors, complex structures, or frequent production changes.

Space and Factory Layout

Factory space is another important consideration when comparing a stranding machine with a vertical cage strander. The physical footprint, machine height, material loading area, maintenance access, and cable routing path should all be considered during equipment planning.

A vertical cage strander can change how production space is used because its main rotating structure is arranged vertically. In applications involving large pay-off reels, this configuration may provide useful layout possibilities.

However, vertical equipment requires sufficient building height and appropriate overhead clearance. The factory should therefore be evaluated in three dimensions rather than considering floor area alone.

For a conventional stranding machine, floor space and the length of the production line may be more important. For a vertical cage strander, floor space, equipment height, lifting access, and vertical clearance all need to be considered.

Large Cable Applications

One of the major reasons manufacturers consider a vertical cage strander is its suitability for large cable applications. Large conductors and heavy cable components can require substantial pay-off capacity and strong mechanical support.

Vertical structures can be designed around large rotating plates and supporting components. This can make them suitable for certain heavy-duty cable manufacturing applications where conventional arrangements may require a very large horizontal installation area.

A conventional stranding machine can also process large conductors when properly designed, but the machine configuration must be selected according to the required conductor size and cable construction.

For large cable projects, manufacturers should pay particular attention to maximum wire diameter, maximum laying diameter, reel dimensions, cage loading capacity, haul-off capacity, and take-up requirements.

Wire Tension Control

Tension control is essential for both a stranding machine and a vertical cage strander. Individual wires need to enter the forming area at stable and controlled tension.

If the tension is too high, wires may stretch, deform, or experience unnecessary mechanical stress. If the tension is too low, the finished conductor may contain loose strands or irregular sections.

In a vertical cage strander, the mechanical arrangement of the pay-off system and rotating cage can influence the way tension is managed. The control system should maintain stable wire feeding while the cage rotates continuously.

For both machine types, operators should monitor wire movement, reel braking, tension changes, and finished conductor appearance. Stable tension is one of the foundations of consistent stranding quality.

Lay Length and Stranding Accuracy

Lay length is an important parameter in any stranding machine. It refers to the axial distance required for a strand to complete one revolution around the conductor axis.

The relationship between rotational speed and line speed determines the resulting lay length. If these parameters are not properly synchronized, the finished conductor can have inconsistent stranding characteristics.

A vertical cage strander follows the same basic principle. The vertical orientation does not eliminate the need for accurate speed coordination. Instead, the machine control system must synchronize cage rotation, haul-off movement, and take-up operation.

Stable lay length is important because conductor geometry can affect flexibility, dimensional consistency, downstream processing, and final cable performance.

Take-Up System Differences

The take-up system is responsible for collecting the finished stranded conductor. Both a stranding machine and a vertical cage strander require stable take-up operation to maintain continuous production.

For smaller and medium cable products, the take-up system may use conventional reels and controlled winding equipment. For large cable products, the take-up system must be capable of handling greater cable weight and larger reel dimensions.

The take-up speed should be synchronized with the stranding process. Poor synchronization can create changes in conductor tension, irregular winding, or unstable production.

Maintenance Considerations

Maintenance requirements vary according to machine design, production load, and operating environment. A stranding machine may require regular inspection of bearings, wire guides, pay-off components, transmission systems, tension mechanisms, electrical controls, and take-up equipment.

A vertical cage strander has similar maintenance requirements but may involve larger rotating structures and additional supporting components. Bearings, rotating plates, drive systems, guide components, and safety systems should receive particular attention.

Regular maintenance can help reduce unexpected downtime. Operators should establish inspection routines based on actual machine operating hours and production conditions rather than waiting for visible equipment problems.

Advantages of a Stranding Machine

A stranding machine provides manufacturers with a flexible way to combine individual wires into controlled conductor structures. Depending on the design, it can support different conductor sizes, strand counts, production speeds, and cable applications.

Another advantage is equipment variety. Manufacturers can choose from different machine structures according to their production requirements. This makes the general stranding machine category suitable for a broad range of cable manufacturing processes.

For standard wire and Cable Production, a properly selected stranding machine can provide stable operation, controlled lay length, consistent conductor formation, and efficient continuous production.

Advantages of a Vertical Cage Strander

The primary advantage of a vertical cage strander is its vertical mechanical arrangement. This design can be particularly useful for large cable components, large pay-off reels, and heavy-duty production requirements.

A vertical configuration can provide an alternative factory layout compared with conventional horizontal equipment. In suitable applications, it may allow large rotating structures and pay-off components to be arranged efficiently within the available production area.

Vertical cage equipment can also be designed with strong mechanical support for demanding production conditions. Its suitability, however, should always be determined by the actual cable specification and production requirements.

Which Equipment Should You Choose?

The choice between a conventional stranding machine and a vertical cage strander should be based on the product rather than the machine name alone.

For smaller and medium-sized conductors, flexible cable products, or applications where high production speed is important, a suitable conventional stranding machine may provide an efficient solution.

For large conductors, heavy cable components, large pay-off reels, or applications requiring a vertical equipment arrangement, a vertical cage strander may be more appropriate.

Before making a decision, manufacturers should review wire diameter, number of wires, conductor diameter, cable weight, target line speed, lay length, reel size, production volume, factory height, available floor space, and maintenance requirements.

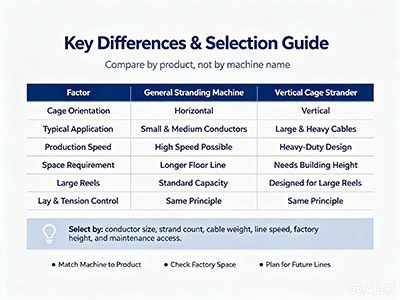

Key Factors to Compare

When comparing a stranding machine with a vertical cage strander, manufacturers should evaluate several practical factors:

• Machine structure and cage orientation

• Applicable wire and conductor diameter

• Number of pay-off positions

• Maximum stranding diameter

• Production speed and output requirements

• Lay length control

• Wire tension control

• Reel size and loading method

• Take-up capacity

• Factory floor space and building height

• Maintenance access

• Automation and control requirements

These factors provide a more useful basis for equipment selection than comparing machine names alone. A well-matched machine can improve production stability and reduce unnecessary operating limitations.

Stranding Machine and Vertical Cage Strander in Modern Cable Manufacturing

Modern cable manufacturing requires equipment that can provide stable production while adapting to different conductor specifications. A stranding machine remains a fundamental part of many cable production processes, while the vertical cage strander provides a specialized configuration for applications with particular structural and handling requirements.

As cable products become more diverse, equipment selection increasingly depends on conductor dimensions, production volume, material characteristics, automation requirements, and factory layout. Manufacturers should therefore consider the complete production process instead of evaluating a single machine parameter.

Both a stranding machine and a vertical cage strander can deliver consistent results when correctly configured and operated. The most suitable solution is the one that matches the cable construction, production target, available installation conditions, and long-term manufacturing requirements.

Conclusion

The difference between a stranding machine and a vertical cage strander is mainly related to machine classification and structural arrangement. A stranding machine is a broad category of cable manufacturing equipment, while a vertical cage strander uses a vertical cage configuration to perform the stranding process.

For general wire and cable production, a suitable stranding machine can provide flexible production options and stable conductor formation. For large conductors, heavy cable components, large reels, and applications where vertical equipment layout is beneficial, a vertical cage strander can provide a practical alternative.

The right choice should always be based on wire size, conductor construction, strand count, production speed, lay requirements, reel capacity, cable weight, factory conditions, and future production plans. By evaluating these factors carefully, cable manufacturers can select stranding equipment that supports stable operation, consistent quality, and efficient long-term production.
