What Is an LSZH Extruder and Why Is It Used for Cable Production?
An LSZH extruder is specialized extrusion equipment used to process low-smoke zero-halogen materials for wire and cable production. The LSZH extruder melts, conveys, and forms the material around a conductor or cable core to create a controlled insulation or protective layer. With stable temperature control, material feeding, extrusion pressure, cooling, and take-up, an LSZH extruder supports consistent cable production and efficient manufacturing.
An LSZH extruder is an extrusion machine designed to process low-smoke zero-halogen compounds used in cable manufacturing. LSZH stands for low smoke zero halogen, referring to material characteristics that are important in cable applications where smoke generation and halogen content are key considerations.
The main function of an LSZH extruder is to transform solid LSZH compound into a controlled molten material and apply it around a moving conductor or cable core. The extrusion system typically includes a feeding unit, screw and barrel, heating and cooling zones, extrusion head, die, cooling section, traction system, and take-up equipment.
During cable production, the LSZH extruder must maintain stable material flow and accurate processing conditions. The final insulation or sheath should have consistent thickness, suitable concentricity, stable dimensions, and a uniform surface. For this reason, the LSZH extruder is an important part of a complete Cable Production Line.
LSZH means low smoke zero halogen. LSZH materials are used in wire and cable production when the cable design requires low smoke characteristics and limited halogen content during combustion or fire-related conditions.
Traditional cable materials and LSZH compounds can have different processing characteristics. LSZH compounds may require careful control of extrusion temperature, screw speed, residence time, pressure, cooling, and material feeding. The exact processing paraMeters depend on the material formulation and cable specification.
Because material behavior varies, an LSZH extruder should be configured and operated according to the specific compound being processed. Proper parameter control helps maintain stable extrusion and reduces the risk of dimensional or surface variations.
The main reason an LSZH extruder is used for cable production is to process LSZH insulation and sheath materials into controlled cable layers. When an application requires LSZH material characteristics, specialized extrusion equipment provides the controlled heating, conveying, forming, and cooling required to manufacture the cable.
An LSZH extruder can apply insulation around individual conductors or form an outer protective sheath around a completed cable structure. The same basic extrusion principle is used in both cases, although the extrusion head, die, material output, and line configuration may differ.
Using an appropriate LSZH extruder allows manufacturers to control important production parameters such as material temperature, extrusion output, conductor speed, cooling conditions, and take-up tension. Stable control contributes to consistent cable dimensions and repeatable production.

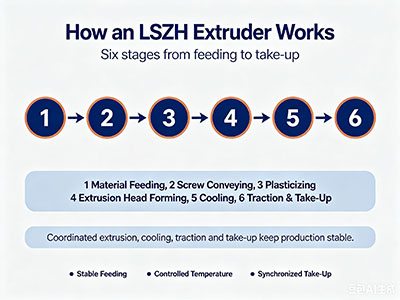

The working process of an LSZH extruder begins with material feeding. LSZH compound enters the feeding system and is delivered into the barrel at a controlled rate. Consistent feeding is important because variations in material supply can influence extrusion output and insulation thickness.
Inside the barrel, the rotating screw transports the LSZH material through different processing zones. Heat from the barrel and mechanical energy generated by the screw gradually soften and plasticize the material. The screw then conveys the material toward the extrusion head.
At the extrusion head, the molten LSZH material is distributed around the conductor or cable core. The die determines the approximate shape and dimensions of the extruded layer. Proper centering and material distribution are important for maintaining consistent insulation thickness.
After leaving the extrusion head, the cable enters a cooling section. Cooling solidifies the LSZH material and helps stabilize the finished cable diameter. Traction equipment then controls the movement of the cable, while the take-up system winds the finished product onto a reel.

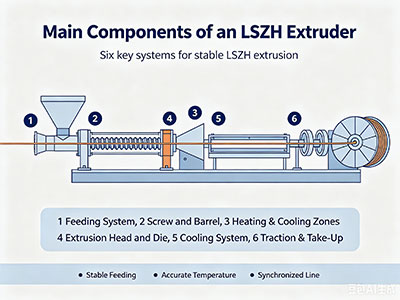

The feeding system supplies LSZH material to the extruder. Stable feeding helps maintain consistent output and reduces fluctuations during continuous cable production. Depending on the equipment configuration, feeding can be designed around different material supply methods and production capacities.
The screw and barrel form the core processing section of the LSZH extruder. The screw conveys, melts, mixes, and pressurizes the material, while the barrel provides controlled thermal conditions.
Screw design should match the LSZH compound and required output. Screw geometry influences conveying efficiency, plasticization, pressure stability, and material residence time. Selecting suitable screw characteristics is therefore important for reliable LSZH extrusion.
The heating and cooling system maintains the processing temperature of the LSZH material. Different barrel zones can require different temperature settings to achieve stable plasticization and material flow.
Temperature control should be accurate and stable. Excessive temperature can affect material behavior, while insufficient temperature can result in incomplete plasticization and unstable extrusion.
The extrusion head directs the molten LSZH material around the conductor or cable core. The die determines the shape and dimensions of the extruded layer.
Head alignment and die selection have a direct effect on insulation thickness and concentricity. Proper tooling helps maintain stable material distribution and consistent cable dimensions.
The cooling system removes heat from the newly extruded LSZH layer. Controlled cooling allows the material to solidify while maintaining its intended shape.
Cooling capacity should be matched to cable diameter, material characteristics, extrusion output, and line speed. A high-speed LSZH extruder requires effective coordination between extrusion and cooling to maintain dimensional stability.
Traction equipment controls cable movement through the extrusion line. The take-up system then winds the finished cable onto a reel. Both systems must operate at a controlled and synchronized speed.
If traction speed changes unexpectedly, insulation thickness and cable diameter may fluctuate. Similarly, unsuitable take-up tension can cause winding problems or unnecessary mechanical stress on the finished cable.
One of the most common uses of an LSZH extruder is applying insulation around a conductor. The conductor enters the extrusion head continuously while the LSZH material forms an insulating layer around it.
The insulation thickness depends on the cable specification and extrusion tooling. Maintaining stable thickness is important because excessive material increases consumption, while insufficient thickness may fail to meet the required product specification.
An LSZH extruder must therefore maintain a stable relationship between material output and conductor speed. Accurate temperature control and stable tension further support consistent insulation geometry.
An LSZH extruder can also be used to apply an outer sheath around a completed cable structure. The sheath provides an additional protective layer and contributes to the overall external dimensions of the finished cable.
Sheathing extrusion can involve larger cable diameters and higher material output than conductor insulation. The extrusion head and cooling system must therefore be selected according to the cable structure and production requirements.
Stable sheathing conditions help reduce surface defects, dimensional variation, and unnecessary material consumption. The LSZH extruder should operate together with suitable traction, cooling, and take-up equipment to maintain continuous production.
An LSZH extruder provides controlled heating, conveying, and plasticization of LSZH compounds. Stable processing conditions help manufacturers maintain consistent extrusion output throughout continuous cable production.
Accurate extrusion control helps maintain stable insulation or sheath thickness. Consistent dimensions are important for Cable Quality, downstream processing, installation, and finished product handling.
Controlled extrusion output allows manufacturers to apply the required amount of LSZH material more accurately. Reducing excessive insulation or sheath thickness can improve material utilization and help reduce production waste.
An LSZH extruder can operate as part of a continuous cable Production Line. When feeding, extrusion, cooling, traction, and take-up are properly synchronized, production can run smoothly with fewer unnecessary interruptions.
An LSZH extruder can be configured for different cable structures and production requirements. Depending on the equipment design, it can support insulation extrusion, inner layer extrusion, or outer sheathing applications.
Modern extrusion systems can monitor and control temperature, speed, pressure, tension, and other production parameters. Better process control helps operators maintain repeatable production conditions and identify abnormal operation more quickly.
The applications of an LSZH extruder depend on the type of LSZH material and cable being manufactured. LSZH extrusion can be used for various electrical and communication cable products where the required material characteristics are part of the product specification.
Communication cable production can require accurate insulation dimensions and stable material application. An LSZH extruder can provide controlled extrusion of suitable LSZH materials around conductors or cable cores.
Network cable production requires consistent geometry and controlled insulation. Where LSZH material is specified, an LSZH extruder can form the required insulation or protective layer during continuous production.
Electronic wire can require precise insulation dimensions and stable surface quality. An LSZH extruder can be used to process suitable LSZH compounds for specific electronic wire applications.
Building cable production may require particular material and fire-related characteristics. Where an LSZH construction is specified, an LSZH extruder can provide continuous insulation or sheath extrusion.
Industrial cable applications can involve different conductor sizes, insulation structures, and environmental requirements. An LSZH extruder can be integrated into suitable production lines where low-smoke zero-halogen materials are required.
Transportation cable systems can require controlled material characteristics and consistent manufacturing. LSZH extrusion equipment can support suitable cable constructions where the specified LSZH compound is selected.
Temperature control is one of the most important factors affecting LSZH extruder performance. LSZH materials need appropriate thermal conditions for melting and processing. The correct temperature range depends on the specific compound formulation.
An LSZH extruder typically uses multiple heating zones along the barrel. Each zone can be adjusted to support stable material movement and plasticization. The extrusion head may also have independent temperature control.
Operators should avoid treating temperature as a single fixed value. Material feeding, screw speed, line speed, output, and ambient conditions can influence actual processing behavior. Stable temperature monitoring provides a stronger foundation for consistent cable production.
Extrusion speed directly affects production capacity, but higher speed does not always mean better efficiency. The LSZH extruder must maintain sufficient material plasticization and stable output at the selected speed.
When line speed increases, cooling requirements also increase. Traction and take-up systems must maintain stable synchronization with the extrusion output. If one part of the production line cannot match the required speed, product quality may become unstable.
For this reason, the practical performance of an LSZH extruder should be evaluated by stable operating speed, consistent cable quality, material utilization, and production continuity rather than maximum speed alone.
Tension control plays an important role in cable production because the conductor or cable core must move smoothly through the extrusion head. Excessive tension can change conductor position, while insufficient tension can cause unstable feeding.
Stable tension helps maintain conductor centering inside the extrusion head. This supports more consistent insulation thickness and improved concentricity.
The LSZH extruder should therefore be integrated with suitable pay-off, traction, and take-up systems. These components should work together to maintain stable material movement throughout the complete cable Production Process.
When selecting an LSZH extruder, manufacturers should first define the cable specifications. Important factors include conductor diameter, cable diameter, LSZH material type, insulation thickness, sheath thickness, required production speed, material output, and reel dimensions.
Screw diameter and configuration should match the expected material output. The heating system should provide sufficient control range, while the extrusion head should support accurate material distribution.
Cooling capacity is another important factor. A production line designed for high-speed cable production needs enough cooling capability to stabilize the extruded layer before take-up.
Manufacturers should also evaluate automation, control functions, maintenance access, tooling changes, production flexibility, and compatibility with other cable production equipment. Choosing an LSZH extruder as part of the complete line can provide better long-term production coordination.
Common LSZH extruder problems include unstable extrusion output, uneven insulation thickness, inconsistent cable diameter, poor surface appearance, material buildup, incomplete plasticization, and excessive material consumption.
Uneven insulation can result from improper die alignment, unstable conductor positioning, tension variation, or inconsistent material flow. Surface defects may be associated with temperature conditions, contamination, tooling, or material processing parameters.
Output fluctuations can be related to feeding instability, screw operation, temperature changes, or pressure variations. Troubleshooting should consider the complete LSZH extruder system rather than changing one parameter without checking the rest of the production conditions.
Regular maintenance helps maintain stable LSZH extruder performance. The screw, barrel, extrusion head, die, heaters, cooling components, feeding system, sensors, motors, and transmission components should be inspected according to operating conditions.
Tooling should be kept clean and checked for wear. Temperature sensors should provide reliable readings, while heating zones should respond consistently to control settings.
Maintenance should also include the traction and take-up systems because extrusion quality depends on the complete production line. Preventive maintenance can reduce unexpected downtime and help maintain stable cable production.
Improving LSZH extruder efficiency requires stable processing rather than simply increasing machine speed. Manufacturers should establish suitable operating parameters for each LSZH compound and cable specification.
Temperature, screw speed, extrusion output, conductor speed, cooling conditions, and tension should be monitored during production. Recording these parameters makes it easier to identify deviations and improve repeatability.
Correct tooling also contributes to efficiency. Suitable dies and extrusion heads can help maintain stable dimensions while reducing unnecessary material consumption.
Integration with online measurement equipment can further improve process control. Continuous monitoring of cable diameter and insulation dimensions allows operators to identify production deviations earlier.
An LSZH extruder rarely operates independently. It normally works as part of a complete cable production line that includes conductor pay-off, extrusion, cooling, traction, measurement, and take-up equipment.
Upstream conductor preparation must provide a stable input to the LSZH extruder. The extrusion system then applies the material, while downstream cooling and traction stabilize the finished cable.
This integrated approach is important because a problem in one stage can affect another. For example, unstable pay-off tension can influence conductor position, while unstable take-up speed can affect the extrusion process.
Coordinating the complete cable production line helps manufacturers achieve better production stability, consistent dimensions, efficient material use, and reliable finished cable quality.
An LSZH extruder is specialized equipment used to process low-smoke zero-halogen materials during cable production. It melts and conveys LSZH compounds and forms them around conductors or cable cores to create controlled insulation or protective layers.
The main reason an LSZH extruder is used for cable production is its ability to process suitable LSZH materials under controlled extrusion conditions. Stable feeding, accurate temperature control, suitable screw design, reliable extrusion tooling, effective cooling, and synchronized traction and take-up all contribute to consistent production.
An LSZH extruder can be applied to communication cables, network cables, electronic wires, building cables, industrial cables, transportation cables, and other products according to their specifications. When properly selected and integrated with a complete cable production line, an LSZH extruder can support stable dimensions, efficient material utilization, continuous production, and reliable cable manufacturing.
